About the X Series Pillow Products
The X Series Pillows are designed to provide an effective fire barrier, on a temporary or permanent basis, for services which are subject to frequent changes or replacement. The fire pillows consist of a waterproof glass cloth bag containing organic fillers and intumescent additives.
The X Series Pillows can be added, removed or rearranged in an aperture to accommodate to the needs of the situation and have been tested with metallic pipes, cables, cable bunches, cable trays and cable ladders. Tested in block wall, concrete and masonry walls and concrete floors up to 1m² area and suitable for indoor and outdoor locations pillows remain flexible between 5°C to +40°C.
Three sizes of the fire pillow are available; please ensure that the correct pillow is installed to suit the opening size. Please review the product information below.
*For specific details please refer to the test certification.
For more information please download the Product Data Sheet under the Fire Test Reports
Product Size Availability

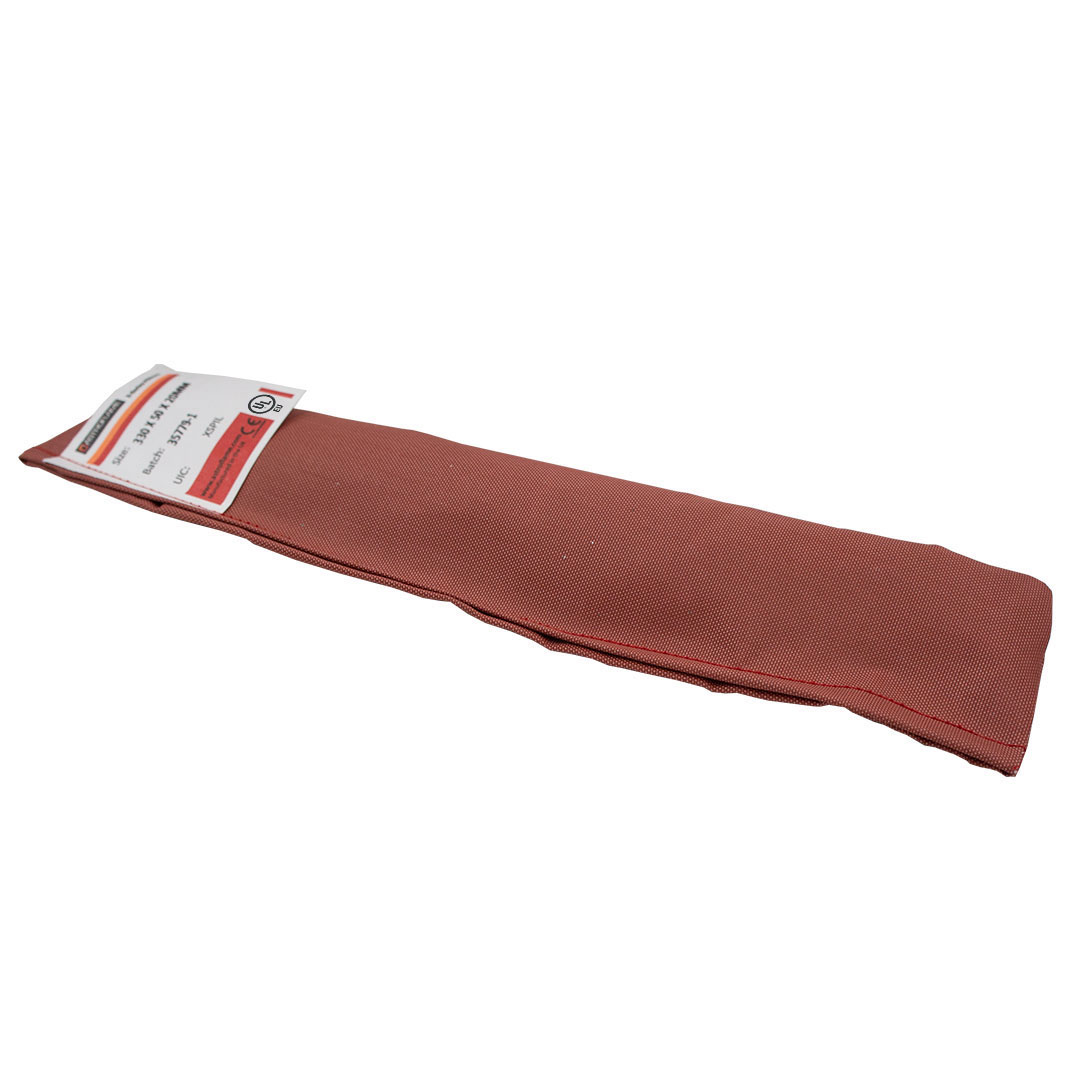

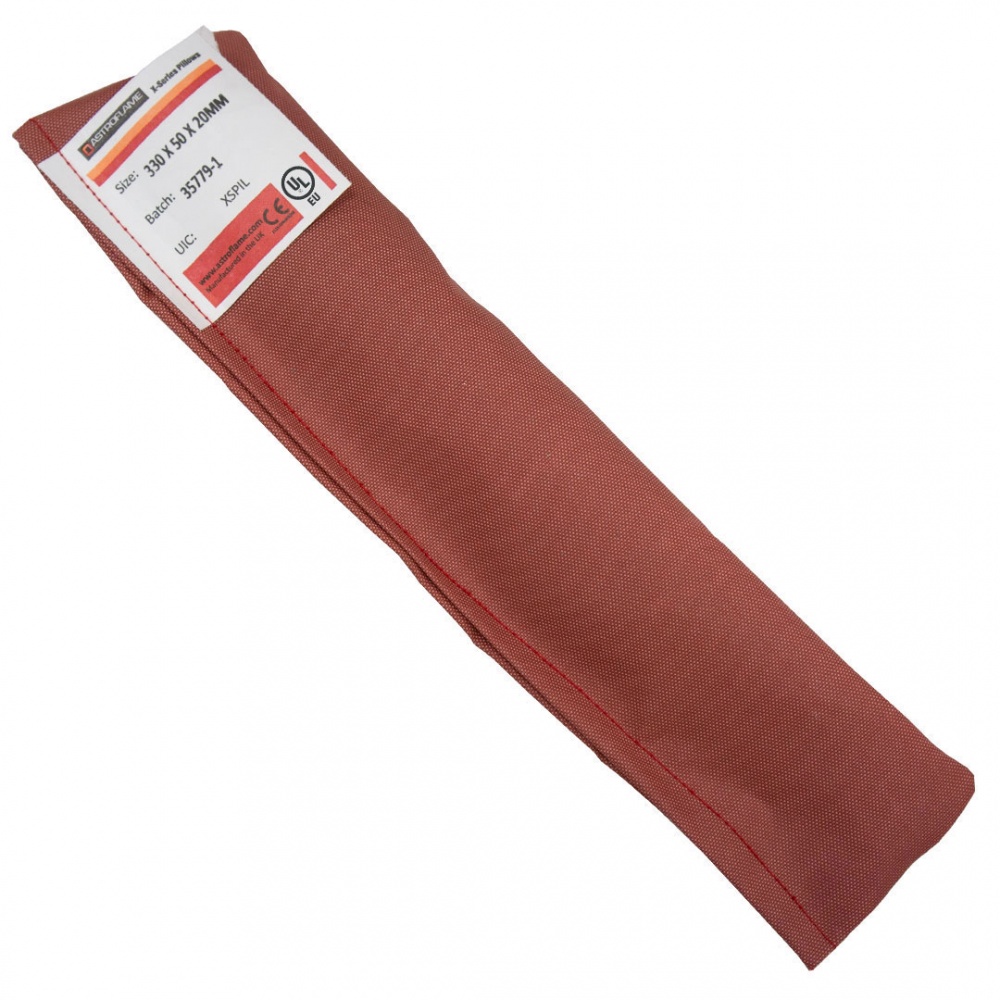

Fire Pillow Length: 330mm, Width: 50mm, Height: 20mm - Colour Red
Weight Supplied: 50gms
Quantity Required Per m2: As Required to fill small voids
For more sizes click here
Installation
We have technical representatives who provide assistance in the selection and specification of the products on this site and should be consulted for exact installation and product suitability. Ensure an early engagement with ourselves, designers, main contractor and specialist installers before any installation. Other trades and/or manufacturers may need to be consulted. For in-depth information, specification and technical advice please call our Head Office on Tel: +(0)1329 841416 or email sales@intumescent.com
Maintenance
All interested parties, designer, specifier, main contractor and specialist installers should provide access to allow the fire stopping seals to be regularly inspected and maintained, as well as records kept of such maintenance at minimum periods of 12 months, as required by the Regulatory Reform Order, and repaired if necessary. Reference should be made to ASFP TGD 17 Code of Practice for the Installation and Inspection of Fire Stopping.
Competency
It is vital that those entrusted to design or install a fire stopping product have the necessary levels of competence to undertake the task professionally and thoroughly. The level of competency required will be commensurate with the expected complexity of the building. All designers must eliminate, reduce or control foreseeable risks that may arise during installation, construction or maintenance when preparing or modifying designs. Clients should ensure that the principal designer and principal contractor carry out their duties under CDM regulations. The ASFP foundation course in passive fire protection provides essential knowledge as part of demonstrating competency and understanding in this key fire protection specialism.
Additional Notes:
Please refer to the ETA/UKCA/UL-EU sheet for fields of application for this product. For further information on installation requirements please refer to the pipe manufacturer data and wall specification to ensure the compatibility of this product, if in doubt please contact the technical team with services and wall specification on Tel: +(0)1329 841416 or email sales@intumescent.com.
Fire Test Reports
Download the following X Series Pillow Product Data Sheet (PDS), Safety Data Sheet (SDS), Technical Data Sheet (TDS), ETA's are European Technical Assessment Sheet, Declaration of Performance (DoP), Certificate of Constancy of Performance (CoC), UL Documentation (UL) & UK Technical Assessment Sheet (UKTA).
X Series Pillows Product Data Sheet
X Series Pillows Safety Data Sheet
X Series Pillows DoP Sheet
X Series Pillows CoC Sheet
X Series Pillows TDS Sheet
X Series Pillows ETA Sheet
X Series Pillows DoP UKCA Sheet
X Series Pillows CoC UKCA Sheet
X Series Pillows UKCA UKTA
X Series Pillows UL Assessment
X Series Pillows UL Documentation
